CCFD6 Teabag Packing Machine
Tea bag packing machine Model CCFD6 features such functions as automatic ration filling, heat-sealing of tea bags, automatic plastering of cotton thread and tags, and cold-sealing of the envelope in the longitudinal direction.
● Photo of Tea Bags
● Machine Introduction
Tea bag packing machine Model CCFD6 features such functions as automatic ration filling, heat-sealing of tea bags, automatic plastering of cotton thread and tags, and cold-sealing of the envelope in the longitudinal direction.
● Technical Parameters
1) Output: 110bags/minute (max.)
2) Max. dosage: 6cm3
3) Bag dimensions: 62.5 x 50mm
4) Envelope dimensions: 70 x 65mm
5) Tag dimensions: 28 x 24mm
6) Thread length: 210mm
7) Power supply: AC 380V, 1.5 KW
8) Net Weight: 640 kg, Gross weight: 800 kg
9) Overall dimensions: 1.7 x 1.1 x 2.2m
10) packing size: 1.22 x 1.14 x 1.967m
Free Packing Materials Together With Machine
| No. | Specification | Model | Unit | Remaks |
| 1 | (125mm width) | roll | ||
| 2 | tag paper: 24mm width | 1 | roll | 24mm |
| 3 | thread | 1 | roll | |
| 4 | adhesive | 1 | bottle |
● Photo of Packing Materials
● Photos of Optional Parts
♢ stirrer
♢ heat-sealed tag system

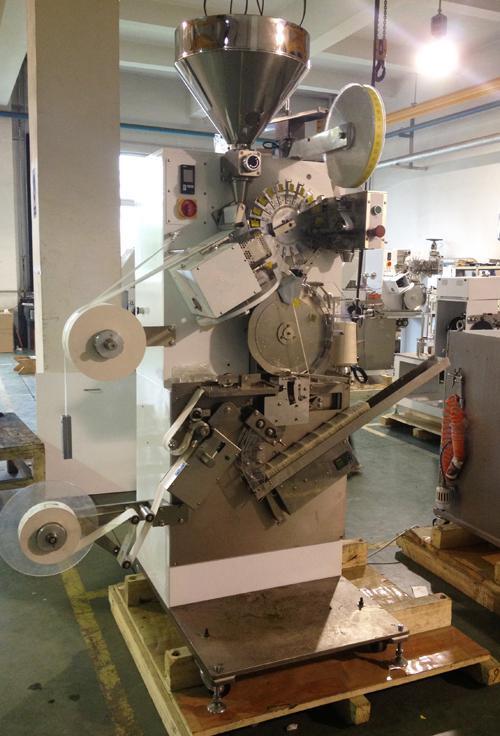

● CCFD6 Teabag Packing Machine in the factory
