DXDC15 Teabag Packing Machine
Tea bag packing machine Model DXDC15 is our new model, and features filling, heat sealing, threading, labeling and over-wrapping functions.
Samples of tea bags:
Inner bag

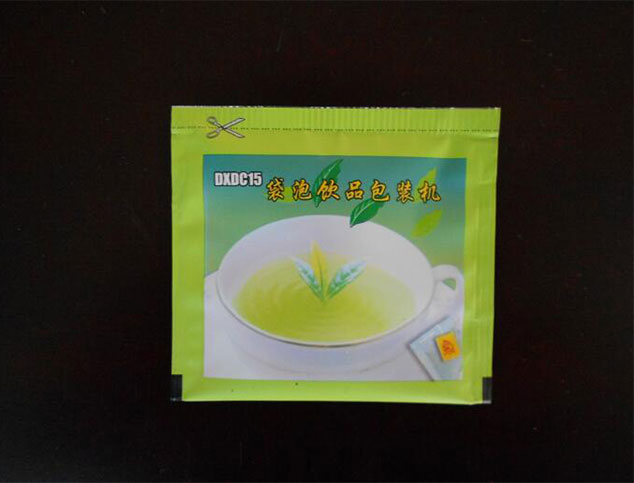

Envelope (outer bag)
Teabags in box
Machine Description:
Tea bag packing machine Model DXDC15 is our new model, and features filling, heat sealing, threading, labeling and over-wrapping functions. Meanwhile, it also has an adjustable loading system for filling different size tea bags. Adopting sealing pads in place of the sealing rollers used in machines of previous generations, this new system greatly improves the machine's flexibility and enables use of different packaging materials. Main materials include paper/PE, plastic/foil/PE and plastic/PE. And it is with fresh-keeping, moisture-proof effects and so on.
Technical Parameters:
| Output | 105± 5 bags/minute |
| Max. dosage | 15cm³ |
| Bag dimensions | 65mm× 62.5mm |
| Envelope dimension(mm) | 82mm× 75mm |
| Tag dimensions (mm) | 28mm× 24mm |
| Thread length | 210mm |
| Power supply | AC380V |
| Total power | 2.36KW |
| Weight | 1210kg |
| Overall dimensions(m³ ) | 1.688m× 1.33m× 2.205m |
| Packing box dimensions(m³ ) | 1.84m× 1.29m× 1.89m |
About inner bags and outer bags:

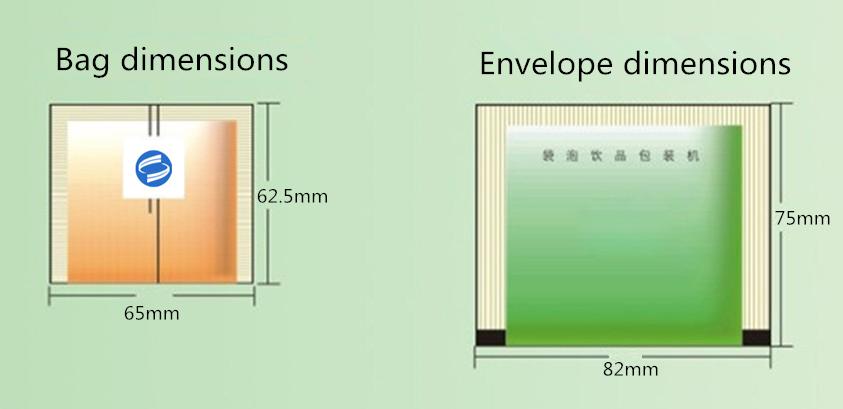

The bag shape size diagram

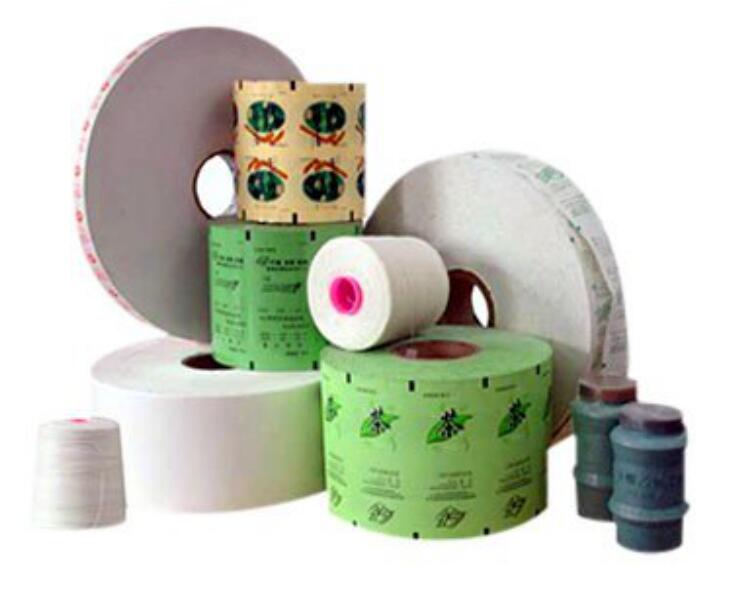

Packing materials
photos of optional parts
pneumatic vacuum feeder
date printing equipment
boxing device
Heat-seal tag system
Heat-seal tag: it is Paper/PE, and the thread and tag are sealed without glue.
